TORRETTE TR-ED
CENTRIFUGAL ROOF FANS WITH HORIZONTAL DISCHARGE FOR HOT FUMES EXTRACTION
Suitable for mounting on flat roofs of commercial,industrial buildings and blocks of flats, etc.
OVERVIEW

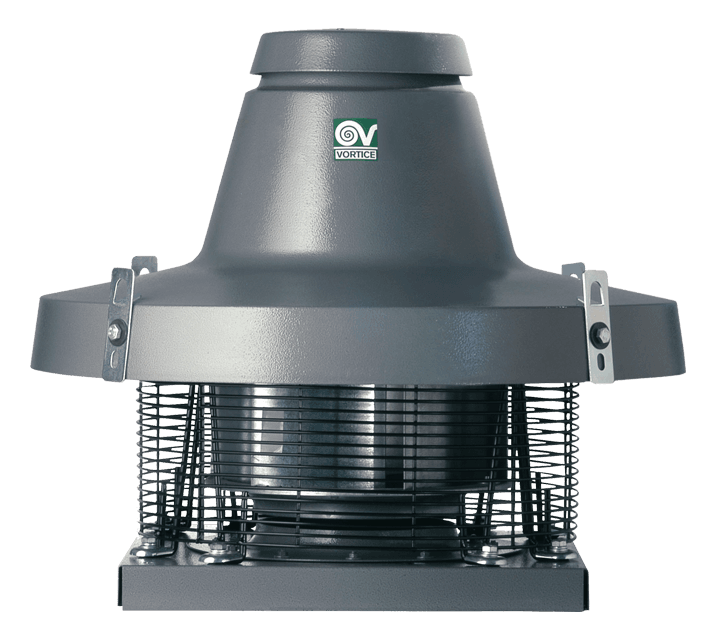

TORRETTE TR-ED – Double Inlet Roof Fan
- 20 models: 6 single phases and 14 three phases.
- All models fitted with steel bird guard.
- Asynchronous induction motors, thermally protected, standard UNELMEC B5 size, ball bearing mounted shafts.
- Galvanized steel sheet fan with self-cleaning, backward curved blades, self-ventilating, die casted aluminum hub, clockwise rotation (intake view).
- Streamlined cross-section intake port, made of polyester sheet steel painted.
- For long term safety, each unit has a safety cable to anchor it to the base.
- Delivery: up to 18.000 m3/h.
- In countries that do not recognize the N°327/2011/UE European Regulation the usage is admitted for
- applications different from hot fumes treatment, ambient temperature between -25°C and +90°C.
- Motors insulation class H.
- Protection rating: IP55
- Insulation class: Cl.I .
KEY FEATURES
- Easy to install on all types of roofs. For low dust, acid-free and non-corrosive air extraction only. Not suitable for installation in ducts located directly above fireplaces or burners.
- Engineered for 2 hours continuous extraction of fumes at 400 °C according to EN 12101-3.
- Three-phase modes 10-150: 2 speeds; minimum speed not available for hot fumes extraction.
