TORRETTE TR-E
ROOF FANS FOR HORIZONTAL DISCHARGE
Suitable for application in residential and industrial environments, for factories, hospitals, nightclubs,
officies, theatres, apartment blocks, gyms, restaurants, etc… Easy to install on top of all roofs.
OVERVIEW

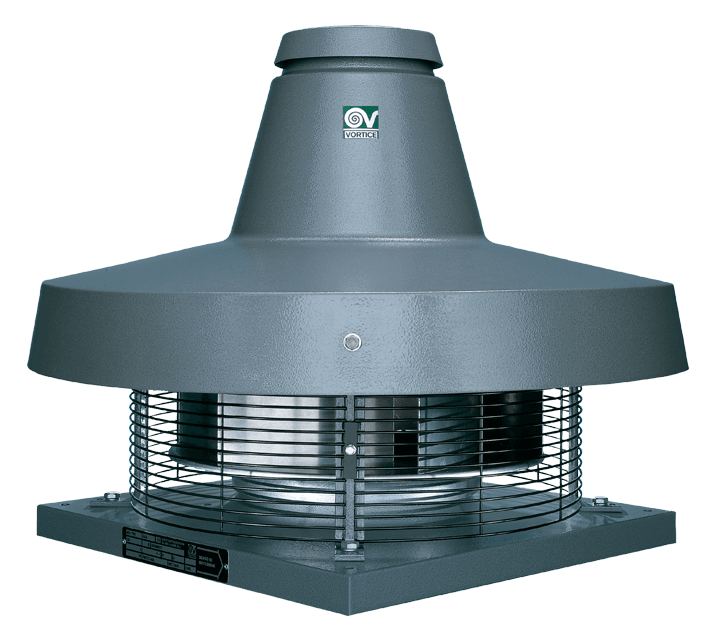

TORRETTE TR-E Roof-Mounted Fan
- 20 models: 6 single-phase and 14 three-phase
- Metal frame coated in corrosion-proof epoxy resin to assure long life and weather resistance.
- Aerodynamic suction nozzle in polyester painted steel sheet.
- All models fitted with steel bird guard.
- Asynchronous induction motor, standard size UNELMEC B5, self-ventilated, with rotor mounted on ball bearings.
- Galvanized steel sheet fan with self-cleaning, backward curved blades, self-ventilating, die cast aluminum hub, clockwise rotation (intake view).
- Single phase models can be controlled by an optional speed controller. Alternatively, they can be controlled by means of optional inverters.
- Max airflow up to 18.000 m3/h.
- Motor insulation class H for models 15205, 15073, 15076,15078, 15079; F for all other models.
- Protection rating: IP55.
- Insulation class: Cl.I .
KEY FEATURES
- For installation in commercial and industrial environments, gyms, discos, offices, theatres, apartment buildings, restaurants, etc.
- To assure product safety over time, all models are fitted with a safety cable to anchor the machine to the support base
- Easy to install on all types of roofs.
- Secure using the eyebolt to facilitate lifting and transportation.
- For low dust, acid-free and non-corrosive air extraction only.
- It is not suitable for installation on ducts located directly above fireplaces or burners.
